SOLWATT INVERTER & SOLAR PCU's

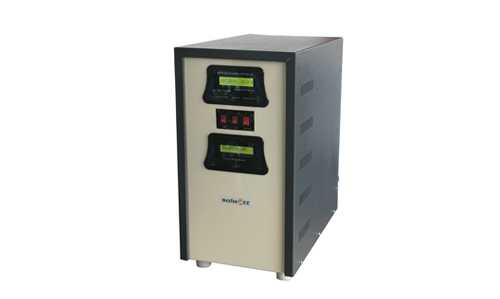

SOLAR - MAINS HYBRID INVERTER
This inverter consists of solar charger, Mains charger, Inverter and a logic Controller is capable of maximising the utilization of Solar power and intelligent enough to provide backup when mains power fails, It always gives first priority to solar and in extreme requirements uses mains charging the main purpose of having logic controller in hybrid system is to monitor all available sources and get maximum efficiency and use solar power as much as possible and increase battery life also.
TECHNICAL SPECIFICATIONS
Inverter Rating 500 VA - 25 KVA- Input Voltage 12V-360VDC (Nominal)
- Output: Single Phase/Three Phase
- Voltage 230VAC/400 or 415 VAC
- Frequency 50Hz+/- 0.5%
- Wave form Pure Sinusoidal
- THD 3% for nonlinear load 5% for nonlinear load
- Overload capacity 1.25 times for 10 minutes ,1.5 times for 1 Minutes
- Line Regulation +/- 1%
- Load Regulation +/-1%
- Technology High frequency SPWM using MOSFET /IGBT
- Crest Factor 3:1
- Efficiency Better than 82% to 92%
- DC Bus Voltage 12VDC - 360 VDC
- Battery Type Load acid tubular / SMF
- Protections Output short circuit, Output 0/V. Output
- Overload & Battery low.
MAINS CHARGER (Optional used in Hybrid Inverter)
- Voltage 12V-360VDC
- Current 10 A-60ADC
- Technology High Frequency PWM Charger using Mosfet
- IGBT charger for better performance with fully automatic CC and CV Control
- Input Voltage 130VAC - 280 VAC Single phase and 250 VAC - 470 VAC for three phase
- Efficiency Better than 85%
- PF Better than 0.80
- Protection Overcharge protection, DC over Voltage Trip
PWM SOLAR CHARGER (Optional)
- Voltage 12V-360VDC
- Current 10A-100ADC
- Solar Panel Input 15 VDC - 650 VDC
- Protections High Frequency PWM using Mosfet / IGBT
charger for performance with fully automatic CV Control
solar Panel Reverse Blocking, over charge Protection
MPPT SOLAR CHARGER (Optional)
- Parameters 1KVA/24VDC 2KVA/48VDC 3KVA/48VDC 5KVA/96VDC
- Maximum Input Power : 1000WP 2000WP 3000WP 5000WP
- Maximum Ocv : 90VDC 140VDC 140VDC 220VDC
- Mppt Tracking Range: 30 – 74VDC 60 – 112VDC 60 – 112VDC 120 – 188VDC
- Nominal Battery Voltage : 24VDC 48VDC 48VDC 96VDC
- Maximum Charging Current : 40A 40A 60A 50A
- Lcd Display Parameters : Solar Power, Solar Energy Generated, Solar Pv Voltage, Solar Pv Current,
Battery Voltage, Battery Current.
- Protections : Solar Pv Pv Reverse, Battery Over Charge, Excess Temperature.
